XD Series chambers are intended for dust ingress (IP5X & IP6X) testing in accordance with IEC / ISO standards, featuring CRCA powder-coated outer panels and SS 304 inner construction. The system ensures uniform dust circulation and controlled air extraction using a centrifugal blower, vacuum system, and dust recovery mechanism.

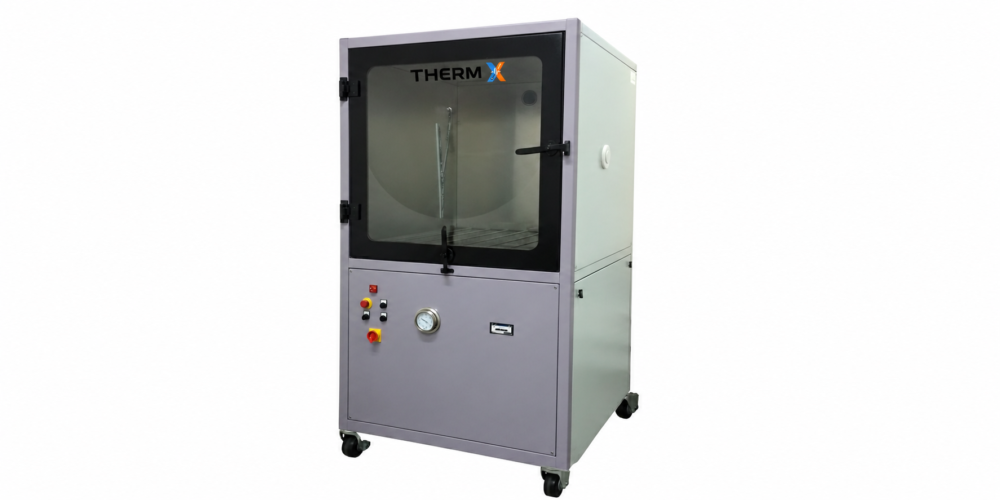

XD Series – Dust Chambers
XR Series Key Features
| Key Feature | Description |
| Model Variants | XD1000 – 1000 L (1000 × 1000 × 1000 mm) XD1500 – 1500 L (1500 × 1000 × 1000 mm) |
| Outer Structure | Made of CRCA steel with powder-coated panels for robust construction |
| Inner Structure | Fabricated from SS 304 stainless steel sheets for corrosion resistance |
| Standards Compliance | Capable of conducting IP5X and IP6X dust tests as per IEC / ISO standards |
| Dust Sieve | Dust sieve provided to ensure uniform particle size distribution |
| Vacuum System | Vacuum pump provided for air extraction from the test sample, with vacuum indicator |
| Air Flow Measurement | Volumetric air flow meter provided for monitoring air extraction rate |
| Dust Circulation | Centrifugal blower provided to ensure uniform dust circulation |
| Dust Recovery System | Designed with hopper and vibrator to settle dust back into the blower system |
| Dust Pre-Heating | Dust pre-heating concept provided as per standard test requirements |
