UTM Integration Test Chambers are designed to operate in conjunction with Universal Testing Machines for mechanical testing under controlled environmental conditions. They allow tensile, compression, and fatigue testing at elevated or sub-zero temperatures. Ideal for material characterization and product validation.

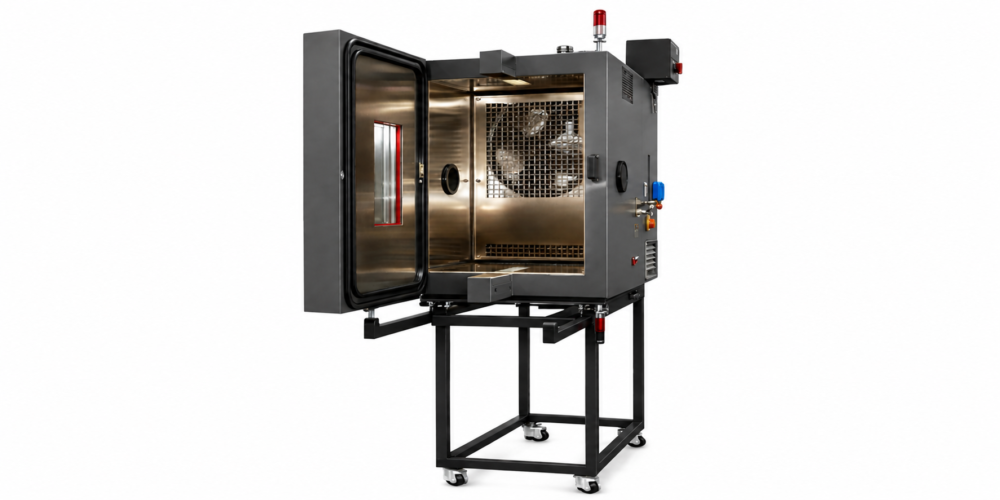

UTM Integration Test Chamber
Standard Chamber Capacities
| Model Number | Volume | Internal Test Space (W × D × H) |
| XUT60 | 60 Liters | 400 × 380 × 400 mm |
| XUT130 | 130 Liters | 550 × 360 × 675 mm |
| XUT260 | 260 Liters | 650 × 600 × 800 mm |
| XUT520 | 520 Liters | 800 × 770 × 850 mm |
Custom chamber sizes available on request.
Additional Information
Key Features
| Feature | Description |
| Temperature Range |
-60°C to 180°C (With Mechanical cascade refrigeration system) -80°C to 180°C (With LN2 purging) |
| Temperature Stability | ±1°C |
| Inner Chamber Material | SS 304 stainless steel for corrosion resistance and long service life |
| Outer Structure | CRCA steel with high-quality powder-coated finish |
| Air Circulation | Uniform air circulation for accurate temperature and humidity distribution |
| Remote Refrigeration System | Robust mechanical refrigeration system for ultra-low temperature applications |
| Thermal Insulation | High-density thermal insulation for superior energy efficiency |
| Shaft insertion | Nonconductive glide on top and bottom for shaft insertion |
| Illumination | Internal test space illumination lamp |
| Cable Access Ports | Provided on both left and right sides |
| Mobility/Movement | Heavy-duty caster wheels with locking mechanism |
| Safety Protections | Built-in protections temperature protection & refrigeration system protection |
