Vibration Shaker Integration Chambers combine environmental testing with mechanical vibration to simulate real-life operational stresses. These systems enable simultaneous temperature, humidity, and vibration testing for advanced reliability assessment. Suitable for aerospace, defense, and high-reliability electronics applications.

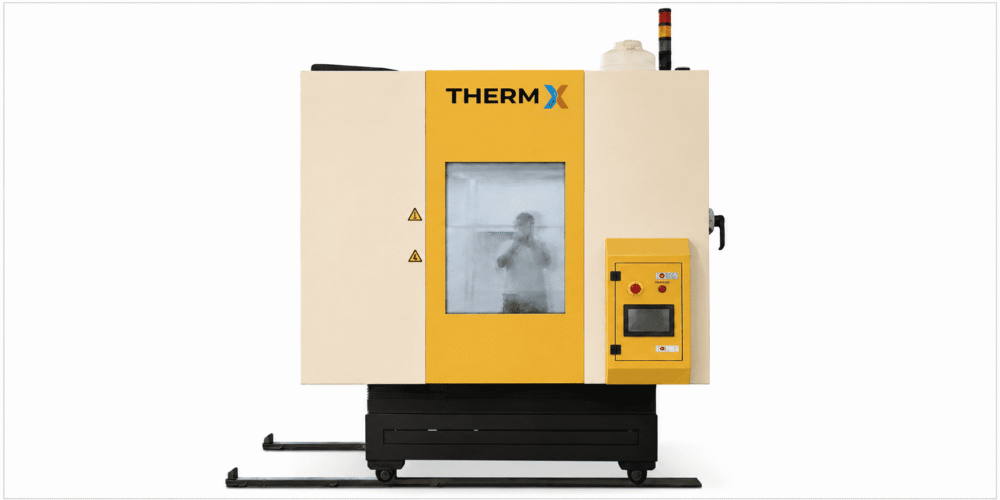

Vibration Shaker Integration Chamber
Standard Chamber Capacities
| Model Number | Volume | Internal Test Space (W × D × H) |
| XTV260 | 260 Liters | 650 × 600 × 800 mm |
| XTV520 | 520 Liters | 800 × 770 × 850 mm |
| XTV1000 | 1000 Liters | 1000 × 1000 × 1000 mm |
| XTV1500 | 1500 Liters | 1250 x 1200 x 1000 mm |
| XTV2000 | 2000 Liters | 1250 x 1300 x 1250 mm |
Custom chamber sizes available on request.
Additional Information
Performance Capabilities
- Temperature Range: -40°C / -70°C to +180°C
- Humidity Range: 10% RH to 95% RH
- Temperature Stability: ±1°C
- Humidity Stability: ±3% RH
- Temperature Ramp Rate: 3°C/min to 20°C/min (IEC60068-3-5)
Key Features
| Feature | Description |
| Inner Chamber Material | SS 304 stainless steel for corrosion resistance and long service life |
| Outer Structure | CRCA steel with high-quality powder-coated finish |
| Air Circulation | Uniform air circulation for accurate temperature and humidity distribution |
| Thermal Insulation | High-density insulation for superior energy efficiency |
| Refrigeration System | Robust mechanical refrigeration system for ultra-low temperature applications |
| Trays | Rod-type stainless steel trays for flexible sample placement |
| Illumination | Internal test space illumination lamp |
| Cable Access Ports | Provided on both left and right sides |
| Mobility/Movement | Heavy-duty caster wheels with locking mechanism |
| Safety Protections | Built-in protections for temperature, system, and compressor faults |
| Shaker Integration Hood | Additional hood provided for shaker integration (head expander and slip table) |
| Vertical Movement | Scissor lift mechanism for vertical movement |
| Horizontal Movement | Wheels with railings for horizontal movement of the chamber |
| Thermal Barrier | Thermal barrier provided for shaker integration |
